Edible oil filling line

Edible Oil Filling Line

The edible oil filling line is a critical part of the oil packaging process. It integrates automatic filling, capping, inspection, coding, and case packing into a continuous and efficient production flow. The line consists of several well‑integrated sections, each designed to maximize productivity and product quality.

1. Control System
It employs a PLC programmable controller to guarantee stable and repeatable performance. All electrical and pneumatic components are imported from reputable suppliers, ensuring long‑term reliability. The photoelectric sensors come from Germany, offering high precision and durability. The system also features intelligent safety protection: it monitors operations in real time, and in case of any malfunction, it triggers an alarm and displays the error code, allowing quick troubleshooting and minimizing downtime.

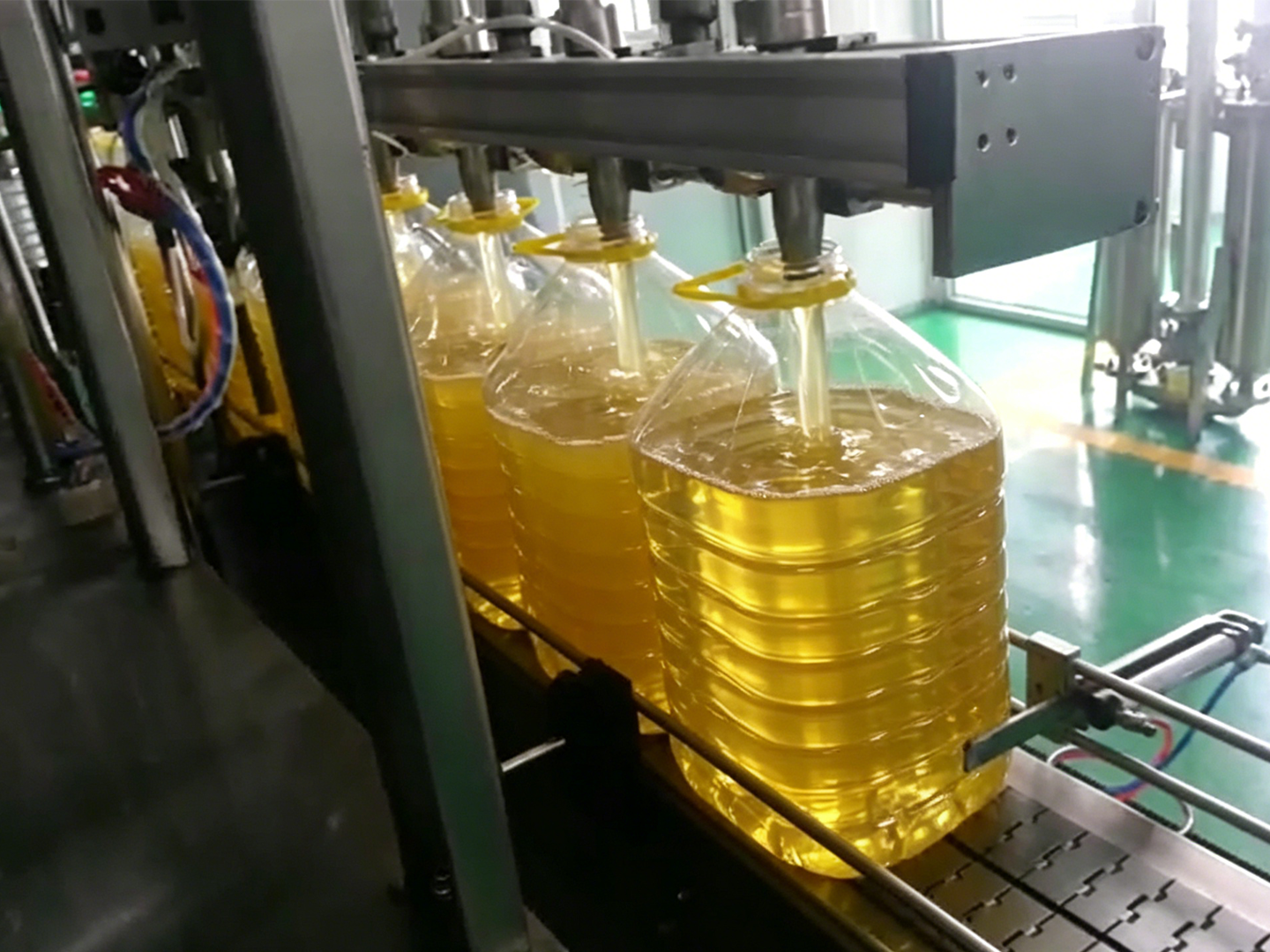

2. Filling Section
This section uses dual‑speed filling technology – a high‑speed stage for fast filling and a low‑speed stage for final trimming to avoid foaming or overflow. This approach boosts throughput while ensuring accurate fill levels. Advanced anti‑drip nozzles and sealing devices completely prevent leakage during the filling cycle, keeping the work environment clean. The filling volume can be adjusted electrically, and the system tracks real‑time data. Changing product specifications is as simple as selecting a new recipe on the touch screen, enabling rapid changeovers and accommodating multiple oil types and bottle sizes with minimal effort.

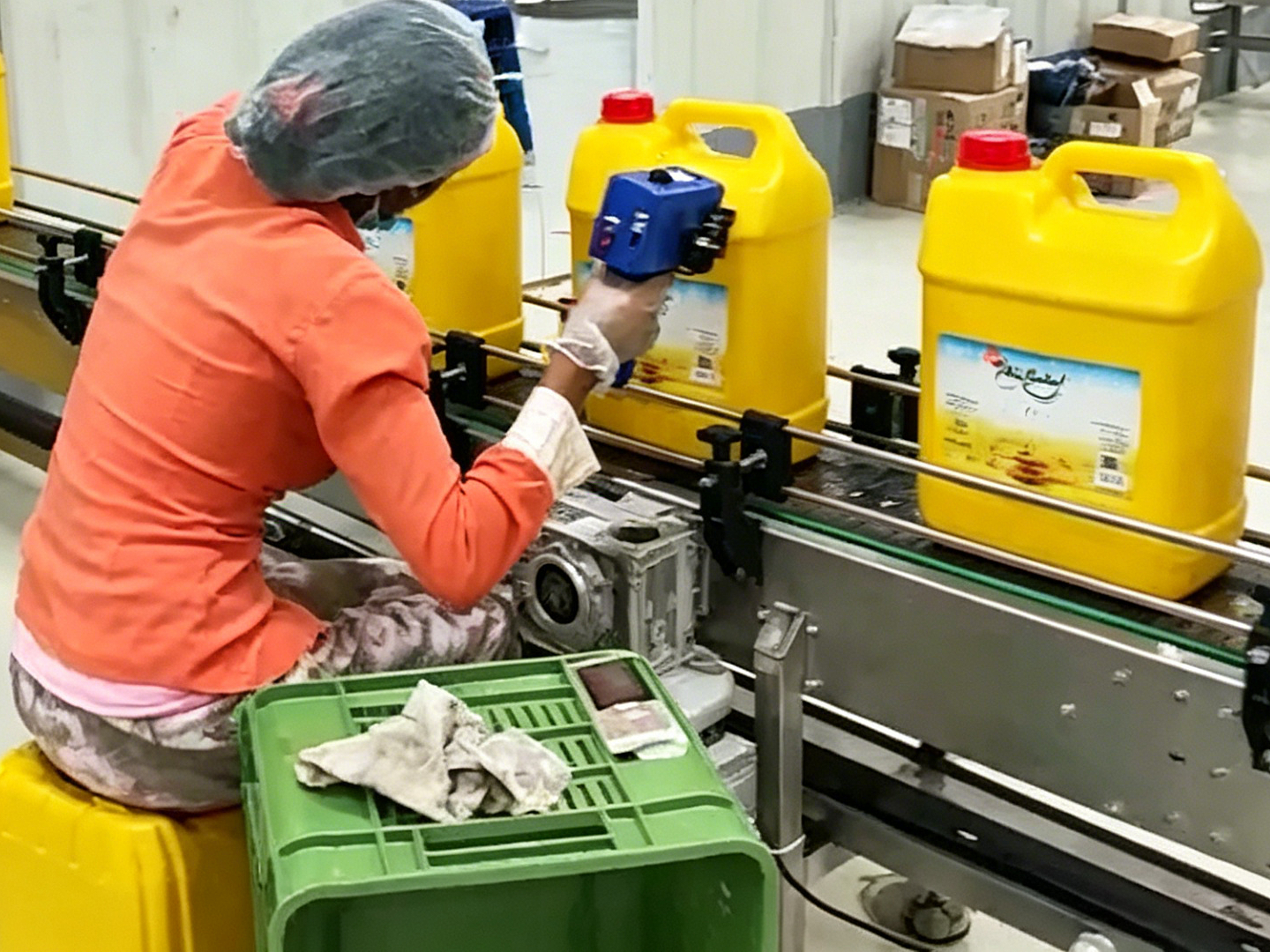

3. Conveying and Linking System
The conveying system adopts a stepped transfer design. The initial stage uses variable frequency drives for smooth acceleration and deceleration, improving overall efficiency. For downstream operations – such as capping, ink‑jet printing, light inspection, and case sealing – we apply a special double‑offset connection technique, which ensures precise alignment and smooth handling, reducing jams and product damage. The entire conveying path is easy to clean and meets food‑grade hygiene standards.

4. Optional Auxiliary Equipment
We offer a full range of optional machines, including automatic cap feeders, continuous screw cappers, combination capper‑sealers, leak testers, foil sealers, ink‑jet coders, automatic case erectors, packers, and case sealers. These can be integrated on demand to form a fully automated packaging line. Depending on the configuration, the line can achieve high output rates – typically several thousand bottles per hour – while maintaining consistent filling accuracy.

Main advantages: high automation and stable performance; effective leak prevention; dual‑speed filling that optimizes both speed and accuracy; exceptional flexibility to handle diverse products; intuitive touch‑screen control with self‑diagnosis; and a modular design that allows easy expansion and customization. With these features, our filling line helps customers achieve efficient, high‑quality packaging production.
